emmLabs
Meitner CDSD Signature Transport and DCC2 Signature DAC
Today's Best Sounding Digital

  • Best SACD (by a wide margin)
  • The Best Solid-state CD







It took 20 years to get right.

Ed Meitner / EMM Labs is a designer of consumer and professional audio products focusing on analog to/from digital converters, used by Sony and Philips as their key technological infrastructure for the new SACD audio format.

With the introduction of this synergistic duo digital is finally able to challenge all but the most astronomically-priced analog LP turntables. Convenience without apologizing. Detail without the ear-bleeding. Dynamics without the artificiality.

The variable output stage is top-notch, at least the equal of that of stand-alone solid-state linestages in the $10,000.00 and greater category, saving the owner from having to purchase a commensurately expensive preamplifier and its associated audiophile-grade interconnect and powercord, all of which only tend to provide places for nasties to enter the music stream anyway. Not only that, but when using the CDSD with the DCC2, digital optical cables are provided which not only tie the two pieces together in a way that prohibits timing errors from occurring, but also eliminates the need for the purchase of yet another costly cable.

But The Meitner is not about their smart design decisions saving you a few bucks. It is all about balls-out no-compromise state-of-the-fucking-art.

Nearly unimaginable levels of sonic transparency. It took 20 years to get right.






DCC2 DIGITAL CONTROL CENTER

  • Analog Inputs

    • Balanced on XLR (switchable to be unbalanced)

    • Unbalanced on RCA

  • Analog outputs

    • Balanced and Unbalanced for signals after pre-amp

    • Balanced and Unbalanced for signals bypassing pre-amp

  • Remote control: Infrared

  • Retail Price: $13,500.00

CDSD DISC TRANSPORT

  • Supported disc formats:

    • Redbook CD

    • Stereo and Multichannel SA-CD

    • Stereo AC-3 tracks from DVD-V and DVD-A discs

    • MP3

  • Outputs:

    • AES/EBU for CD and MP3 only

    • EMM Labs OptiLink (all discs) for up to 6 discrete channels of digital audio

  • System control via Infrared remote and serial RS-232

  • Retail Price: $8,400.00










EMM LABS XDS1




  The Emm Labs XDS1 CD/SACD player is another giant leap for extremely transparent music reproduction.


DETAILS

OFFICIAL WEBSITE

PRICES





EMM LABS PRE2




  The Emm Labs PRE2 Pre-amplifier is next-generation of the excellent pre-amplifiers found in the DCC2 and Switchman.


DETAILS

OFFICIAL WEBSITE

PRICES





EMM LABS DAC2




  The Emm Labs DAC2 is a standalone solid-state DAC that reflects the latest and greatest from Emm Labs.


DETAILS

OFFICIAL WEBSITE

PRICES





EMM LABS TSD1




  The Emm Labs TSD1 CD/SACD transport is the perfect match for the DAC2.


DETAILS

OFFICIAL WEBSITE

PRICES





EMM LABS DCC2 Signature Edition




  The Emm Labs DCC2 SE DAC is an amazingly transparent view into the magic of the music.


DETAILS

OFFICIAL WEBSITE OLDER PHOTOS PHOTOS

PRICES



EMM LABS CDSD Signature Edition




  The Emm Labs CDSD Signature transport is designed to work with the DCC2 SE DAC - and is the best way to get everything out of the DCC2.


DETAILS

OFFICIAL WEBSITE OLDER PHOTOS PHOTOS

PRICES



EMM LABS DAC6e Signature Edition




  The DAC6e SE is the 6-channel version of the 2-channel DCC2 Signature DAC.


DETAILS

OFFICIAL WEBSITE

PRICES



EMM LABS Switchman 3




  The Switchman is the 6-channel version of the preamplifier built-in to the DCC2.


DETAILS

OFFICIAL WEBSITE

PRICES







 EMM LABS
Emm Labs is a Canadian company.

Emm Labs was founded and is run by Ed Meitner





 Sound
Emm Labs is focused on bringing their state-of-the-art pro-audio designs to the consumer market for all home audio aficionados to enjoy.


 Technology

Emm Labs works at the frontiers of pro- and audiophile-level gear building everything from scratch from their own DAC chips to ceramic PC boards.


 Portfolio
Emm Labs has a portfolio of 2 and 6 channel digital gear as well as a 2- and 6-channel preamplifier.





XDS1

CD / SACD Player



DESCRIPTION

The XDS1 is the premier CD/SACD player in the world at this time..



Key Features:

  • Single gain stage from DAC to output with fully discrete Class-A circuitry

  • Meitner Digital Audio Translator (MDAT™) signal processing technology

  • Provides 2x DSD upsampling for SACD and PCM playback

  • Preserves phase, frequency and dynamic integrity of waveform

  • MDAC discrete dual differential D-to-A conversion circuit

  • MFAST technology for instant signal acquisition, jitter-free performance

  • High-isolation resonant mode power supply for silent, green operation

  • Exclusive aerospace-grade composite laminate circuit boards

  • Silky smooth Esoteric™ drive

  • Sculpted, brushed aluminum chassis

  • Low resonance, internally braced design with thick, machined sole plate

  • Available in silver or black

  • LCD display with four brightness levels and a display-off setting

  • Precision-machined aluminum multifunction infrared remote control

  • Remote-controllable polarity inversion performed in the digital domain

  • PCM inputs via AES/EBU and Toslink

  • CE-compliant device

Power Supply:

  • Power factor corrected

  • Factory set to 100V or 115V or 230V, 50/60Hz

  • Power consumption: max. 45 W

Stereo Audio Outputs:

  • Balanced on XLR

  • Unbalanced on RCA

Digital Inputs:

  • AES/EBU

  • SPDIF Toslink

  • Digital Outputs:

  • EMM Optilink

  • AES/EBU

  • Stereo Audio Outputs:

  • XLR 300 ohms balanced, 5V peak

  • RCA 150 ohms unbalanced, 2.5V peak

  • System ports:

  • USB Port for software upgrades

  • Wired RS-232 control

  • External IR Remote

Factory set to 100V or 115V or 230V, 50/60Hz

Power consumption: max. 45 W

Dimensions: W x D x H: 435 x 400 x 145mm

Weight: 17kg





RECOMMENDED USAGE

In combination with the Emm Labs PRE2 linestage - or any other extremely high quality preamplifier or linestage.

OPTIONS



REVIEWS
Manufacturer's Reviews Page
GALLERY

AWARDS

LINKS
OFFICIAL WEBSITE
FAQ
PRICES




PRE2

Solid-state Pre-amplifier



DESCRIPTION
The XDS1 is the premier CD/SACD player in the world at this time..

PRE2 STEREO PRE-AMPLIFIER

Key Features:

  • Two XLR inputs, four RCA inputs, and one RCA Recording Loop.
  • 100% contactless, discrete, signal paths
  • Clean Class-A power to drive cables and loads without degradation
  • Proprietary software-based analog volume control
  • Exclusive composite laminate circuit boards
  • Multifunction infrared remote control
  • Flexible LCD status and control display
  • Serial port for wired remote control
  • Daisy-chain expansion for multi-channel use
  • Aero aluminum machined chassis
  • CE-compliance before 2011

Power Supply:

  • Power factor corrected
  • Factory set to 100V or 115V or 230V, 50/60Hz
  • Power consumption: max. 40 W

Stereo Audio Outputs:

  • Balanced on XLR
  • Unbalanced on RCA

Specifications:

  • S/N ratio: 110dB (A-weighted)
  • THD: 1kHz <0.01%; 20kHz <0.01%
  • Frequency range: 0Hz-100kHz
  • Gain control range: Better than 62 dB
  • Maximum output level: +/- 11V p-p (+26 dBu)
  • Maximum input level: +/- 7V p-p (+22 dBu)
  • Input impedance: XLR - 600 ohms, RCA - 20K ohms
  • Output impedance: XLR - 300 ohms, RCA - 150 ohms
  • System gain: +6dB
  • Stereo analog outputs: XLR and RCA

Dimensions W x D x H: 435 x 400 x 92mm Weight: 12kg


RECOMMENDED USAGE

OPTIONS



REVIEWS
Manufacturer's Reviews Page
GALLERY



AWARDS

LINKS
OFFICIAL WEBSITE
FAQ
PRICES









DCC2 Signature

CD / SACD DAC
Digital to Audio Converter



DESCRIPTION
The DCC2 Signature is a superior DAC/linestage in the world of solid-state digital reproduction..

DCC2 DIGITAL CONTROL CENTER

  • Analog Inputs

    • Balanced on XLR (switchable to be unbalanced)

    • Unbalanced on RCA

  • Analog outputs

    • Balanced and Unbalanced for signals after pre-amp

    • Balanced and Unbalanced for signals bypassing pre-amp

  • Remote control: Infrared

RECOMMENDED USAGE

In combination with the CDSD Signature transport.

OPTIONS



REVIEWS
Manufacturer's Reviews Page
GALLERY

Photos
Old DCC2 Photos

AWARDS

LINKS
OFFICIAL WEBSITE
FAQ
PRICES


CDSD Signature

CD / SACD Transport



DESCRIPTION
The CDSD Signature transport works with the DCC2 Signature DAC in creating the ultimate digital CD / SACD playback system.

CDSD DISC TRANSPORT

  • Supported disc formats:

    • Redbook CD

    • Stereo and Multichannel SA-CD

    • Stereo AC-3 tracks from DVD-V and DVD-A discs

    • MP3

  • Outputs:

    • AES/EBU for CD and MP3 only

    • EMM Labs OptiLink (all discs) for up to 6 discrete channels of digital audio

  • System control via Infrared remote and serial RS-232

RECOMMENDED USAGE



OPTIONS



REVIEWS
Manufacturer's Reviews Page
GALLERY

Photos

AWARDS

LINKS
OFFICIAL WEBSITE
FAQ
PRICES

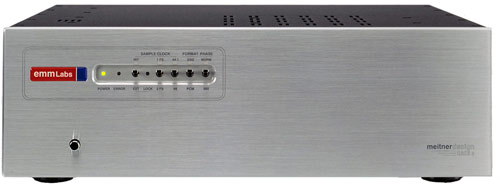

DAC6e

Multi-channel DAC



DESCRIPTION

RECOMMENDED USAGE



OPTIONS



REVIEWS
Manufacturer's Reviews Page
GALLERY



AWARDS

LINKS
OFFICIAL WEBSITE
FAQ
PRICES

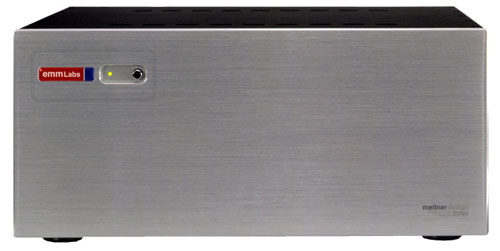

Switchman 3

Multi-channel preamplifier



DESCRIPTION

RECOMMENDED USAGE



OPTIONS



REVIEWS
Manufacturer's Reviews Page
GALLERY



AWARDS

LINKS
OFFICIAL WEBSITE
FAQ
PRICES
