G Series Amplifiers & Preamplifiers ( NL Series )







EDGE ELECTRONICS     G8+

  The G8+ delivers Edge's laser-biased amplifier technology in a smaller, more affordable, monoblock format that is ideally suited for most audio and audio/visual  systems.

DETAILS   OFFICIAL WEBSITE   COMPARISONS


EDGE ELECTRONICS     G8

  The G8 sits at the very top of the class of convention-ally designed high-performance solid-state amplifiers.

DETAILS   OFFICIAL WEBSITE   COMPARISONS


EDGE ELECTRONICS       G6

  The G6 offers an amazing amount of clean, musical  power at a break-through price point.

DETAILS   OFFICIAL WEBSITE   COMPARISONS


EDGE ELECTRONICS G4.5

  The second entry-level Edge amplifier - with with  just a little more power than the G4.

DETAILS OFFICIAL WEBSITE COMPARISONS


EDGE ELECTRONICS     G4

  The entry-level Edge amplifier - with 100% of the clean, detailed musicality of its big brothers but with  just a little less power.

DETAILS   OFFICIAL WEBSITE   COMPARISONS


EDGE ELECTRONICS     G3

  This integrated amplifier has all the qualities that make it a perfect match for many pure-audio systems.

DETAILS   OFFICIAL WEBSITE   COMPARISONS


EDGE ELECTRONICS     G2

  The premier G-series Edge preamplifier - with 100% of the clean, detailed musicality Edge is renowned for.

DETAILS   OFFICIAL WEBSITE   COMPARISONS


EDGE ELECTRONICS     G1

  The entry-level Edge preamplifier - with 100% of the clean, detailed musicality of its big brothers but with  just a little less control and responsive-ness.

DETAILS   OFFICIAL WEBSITE   COMPARISONS






 EDGE
 ELECTRONICS
Edge Electronics is an American company that has been in business since 1987. Each component they manufacture is lovingly assembled by the principals and just a few trusted highly-trained technicians. The company is currently the only company in the world that uses laser-biased transistors in their amplifier design.






 Sound
Why are some astute listeners convinced that Edge amplifiers are the best solid-state amplifier in the world today?

Perhaps it is the speed - where notes just appear when they are supposed to appear- rise and fall naturally and exactly as they should in response to the music - and then die away, without inappropriate lingering. Listening to most, if not all other amplifiers, the listener may feel that the notes are being dragged through molasses. Or perhaps the listener feels that they ordered each note from a restaurant across town, the restaurant was late with the delivery, had burnt the note in the bargain, and the note, unfinished, had a lingering smell the next morning.

Perhaps it is the smoothness of the notes rendered by the amplifiers. They are grown organically, as opposed to carved out of stone in some kind of misbegotten caricature  of the note right out of Dante's Inferno - as so many solid-state amplifiers have done in the past.

Perhaps it is the dynamic capability - the ability to render the inner dynamics which produces notes that sound so entertaining, so real, just like when they were made by the musicians themselves - that the listener is emotionally moved, and often completely overwhelmed by their favorite music.

Or perhaps it is the ability to sound like the finest tubed amplifiers - speed, smoothness, inner detail but without the 2nd harmonic distortion, the heat (the Edge amplifiers run cool), the maintenance and placement issues and all the issues associated with most tubed designs at the extremes of the frequency spectrum.

What we have here is the realization of the promise of solid-state amplifiers; conceived in the 1960s, and after 40 long years of suffering, we finally have a maintenance free, family friendly, general purpose amplifier that surpasses all but perhaps the most ingenious, special-purpose tubed-amplifier designs.

Solid-state amplification can finally sound as good or better than the technology it is (supposed to have) replaced!

All we know is that these amplifiers just simply have the ability to present seamless, top to bottom, inside out, delicious music without doing anything seriously wrong - unlike every other solid-state amplifier in existence.














 Technology
The Laser-Biased Transistor

The "NL" series of amplifiers utilize EDGE proprietary Laser Optical Bias Circuitry.  This new circuit incorporates a 630 nm wavelength laser in each channel operating directly on the silicon substrate of the bias transistors.   The laser bias circuit in turn is part of a servo feedback network.  As the signal rises, the output of the laser increases, and as the signal decreases the laser output falls.  This keeps the bias at the optimum operating point allowing a 10 fold increase in gain.

The additional gain is achieved while  maintaining signal integrity (linearity) - at light speed - a first for solid state amplification.

The "NL" series also features oversize binding posts and up to 16* low leakage snap lock 10,000 µF caps per channel.  Also the new low leakage / low field medical grade transformers are housed in magnetic stainless steel enclosures for non induction and low noise performance.  Chassis construction on these amplifiers is 1/2" thick 6061 aluminum, held together with marine grade stainless steel machine screws.  Heat sinks machined from solid 6061 bar stock keep transistors cool without fans.  The output stages utilize up to 32* N channel bipolar transistors for extremely low output impedance.






 Portfolio
Edge has a portfolio of amplifiers of a number of different pedigrees:








 History
Edge has been in business making audio equipment since 1987.




Tom Maker standing behind
his Edge NL Reference and alongside Steven Norber's (also of Edge) custom speaker.




 Photo Gallery

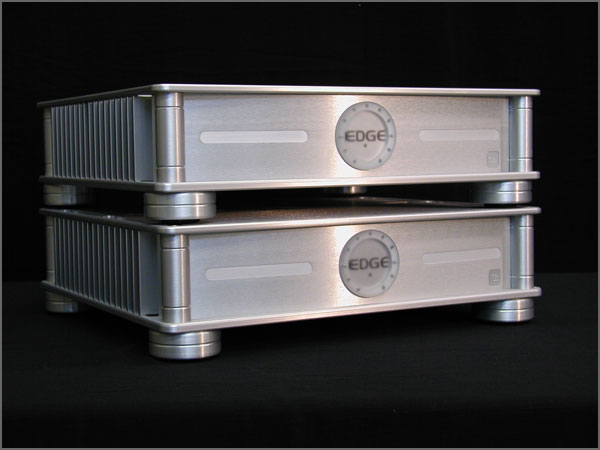

G8+


Monoblock Amplifier

Number of chassis 2
Number of channels 2 (One per chassis)
RMS Power Output: 200 Watts per channel @ 8 Ohms
Bias Circuit One 630 nm Bias Laser per channel
Transformers: One 750 VA per channel
Power Supply Filtration: 60,000 µF per channel
Output Impedance: 0.07 Ohms
Input Impedance: 33,000 Ohms
Constant Current Capability: 26 amps per channel
Input Connection Type: RCA
Dimensions (H x W x D): 4 7/8" x 16 3/4" x 15"
Weight: 52 lbs each

DESCRIPTION

The G8+ monoblocks are Edge Electronics' attempt to put technology from the NL-series amplifiers into an affordable, smaller package. These 200 watt, 52 lb. monoblocks succeeded and continue the Edge Electronics' tradition of building extremely efficient, easy to deploy amplifier designs.

RECOMMENDED USAGE



TECHNICAL HIGHLIGHTS
Dual Chassis Monoblock design
Two 750 VA transformers (one per chassis)
Using EDGE proprietary Laser Biased Control circuitry this amplifier defines "linear".
REVIEWS
MANUFACTURER'S REVIEW PAGE
LINKS
OFFICIAL G8+ PAGE
OFFICIAL TECHNOLOGY PAGE
FAQ
PRICES

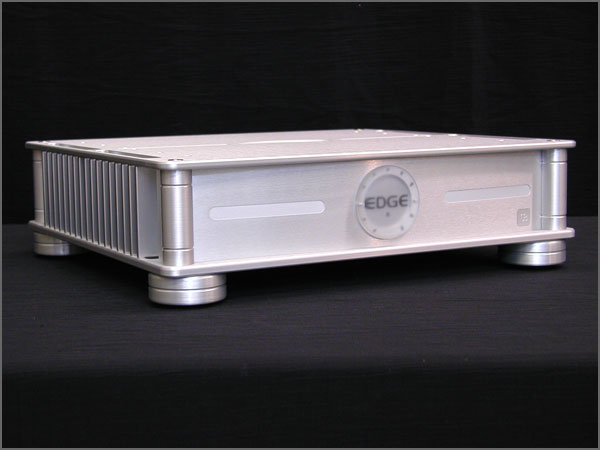

G8


Amplifier

Number of chassis 1
Number of channels 2
RMS Power Output: 175 Watts per channel @ 8 Ohms
Bias Circuit Conventional
Transformers: One 1000 VA
Power Supply Filtration: 60,000 µF per channel
Output Impedance: 0.35 Ohms
Input Impedance: 33,000 Ohms
Constant Current Capability: 18 amps
Input Connection Type: RCA
Dimensions (H x W x D): 4 7/8" x 16 3/4" x 15"
Weight: 52 lbs

DESCRIPTION

The G8 amplifier is the penultimate amplifier in the line of Edge's non-laser-biased amplifiers.

RECOMMENDED USAGE



TECHNICAL HIGHLIGHTS
175 watts/channel
with large 1000 VA transformer
Large 60,000
µF capacitor-based power filtration
REVIEWS
MANUFACTURER'S REVIEW PAGE
LINKS
OFFICIAL G8 PAGE
OFFICIAL TECHNOLOGY PAGE
FAQ
PRICES



G6
Amplifier
Number of chassis 1
Number of channels 2
RMS Power Output: 135 Watts per channel @ 8 Ohms
Bias Circuit Conventional
Transformers: One 600 VA
Power Supply Filtration: 40,000 µF per channel
Output Impedance: 0.07 Ohms
Input Impedance: 33,000 Ohms
Constant Current Capability: 14 amps
Input Connection Type: RCA
Dimensions (H x W x D): 4 7/8" x 16 3/4" x 15"
Weight: 50 lbs


DESCRIPTION



RECOMMENDED USAGE



TECHNICAL HIGHLIGHTS
135 watts/channel
with large 600 VA transformer
Large 40,000
µF capacitor-based power filtration
REVIEWS
MANUFACTURER'S REVIEW PAGE
LINKS
OFFICIAL G6 PAGE
OFFICIAL TECHNOLOGY PAGE
FAQ
PRICES

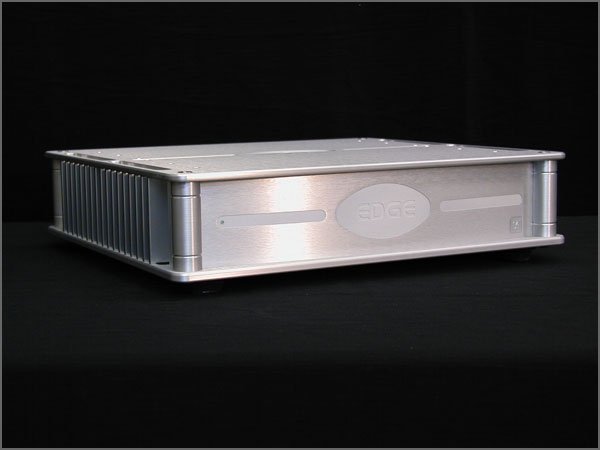

G4.5

A/V Amplifier

Number of chassis 1
Number of channels 3
RMS Power Output: 100 Watts per channel @ 8 Ohms
Bias Circuit Conventional
Transformers: One 1000 VA
Power Supply Filtration: 40,000 µF per channel
Output Impedance: 0.15 Ohms
Input Impedance: 33,000 Ohms
Constant Current Capability: 14 amps
Input Connection Type: RCA
Dimensions (H x W x D): 4 7/8" x 16 3/4" x 15"
Weight: 51 lbs


DESCRIPTION

RECOMMENDED USAGE

TECHNICAL HIGHLIGHTS
3 channels
75 watts/channel
with large 1000 VA transformer
Large 40,000
µF capacitor-based power filtration
REVIEWS
MANUFACTURER'S REVIEW PAGE
LINKS
OFFICIAL G4.5 PAGE
OFFICIAL TECHNOLOGY PAGE
FAQ
PRICES

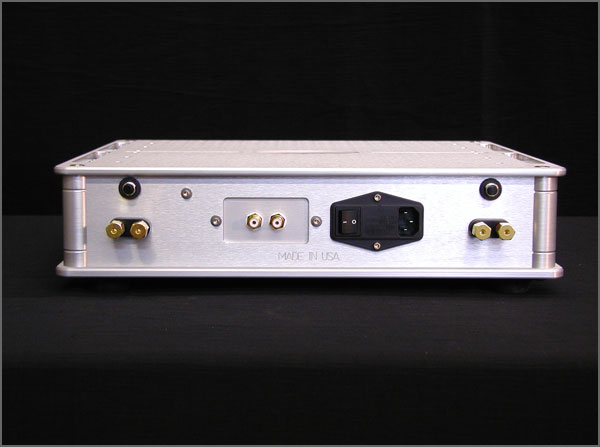

G4


Amplifier

Number of chassis 1
Number of channels 2
RMS Power Output: 100 Watts per channel @ 8 Ohms
Bias Circuit Conventional
Transformers: One 750 VA
Power Supply Filtration: 20,000 µF per channel
Output Impedance: 0.15 Ohms
Input Impedance: 33,000 Ohms
Constant Current Capability: 10 amps
Input Connection Type: RCA
Dimensions (H x W x D): 4 7/8" x 16 3/4" x 15"
Weight: 45 lbs


DESCRIPTION

RECOMMENDED USAGE

TECHNICAL HIGHLIGHTS
75 watts/channel
with large 750 VA transformer
20,000
µF capacitor-based power filtration
REVIEWS
MANUFACTURER'S REVIEW PAGE
LINKS
OFFICIAL G4 PAGE
OFFICIAL TECHNOLOGY PAGE
FAQ
PRICES

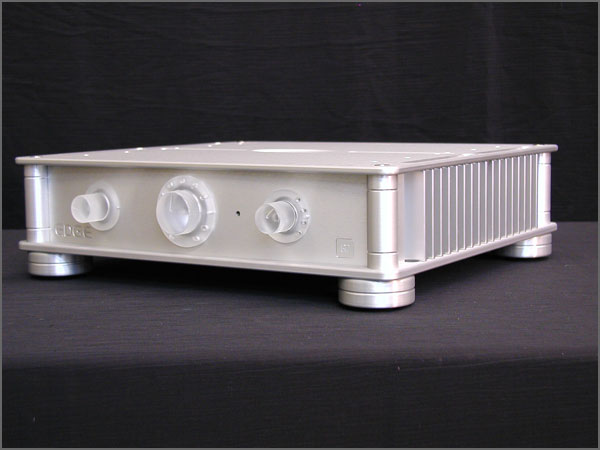

G3


Integrated
Amplifier

Number of chassis 1
Number of channels 2
RMS Power Output: 85 Watts per channel @ 8 Ohms
Bias Circuit Conventional
Transformers: One 350 VA
Power Supply Filtration: 20,000 µF per channel
Output Impedance: 0.15 Ohms
Input Impedance: 33,000 Ohms
Constant Current Capability: 6 amps
Input Connection Type: RCA
Dimensions (H x W x D): 4 7/8" x 16 3/4" x 15"
Weight: 35 lbs

DESCRIPTION

RECOMMENDED USAGE

TECHNICAL HIGHLIGHTS
65 watts/channel
350 VA transformer
20,000
µF capacitor-based power filtration
REVIEWS
MANUFACTURER'S REVIEW PAGE
LINKS
OFFICIAL G3 PAGE
OFFICIAL TECHNOLOGY PAGE
FAQ
PRICES

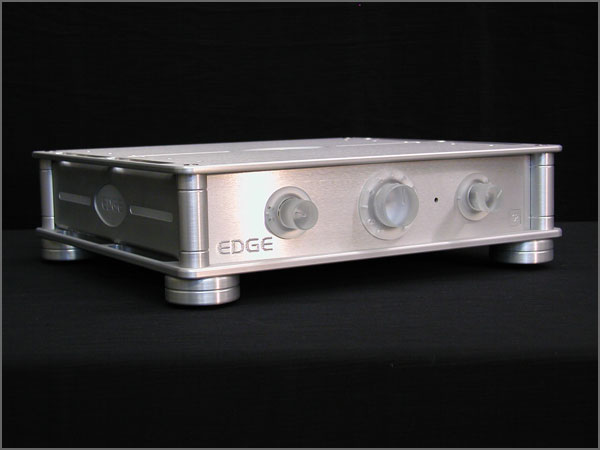

G2


AC/DC
(Battery-powered)
Pre Amplifier

Remote Volume Control: Yes
Transformers: One 300 VA
Power Supply Filtration: 20,000 µF per channel
Input Connection Type: RCA
Total Harmonic Distortion: <0.009%
Transient Intermodulation Distortion:  <0.09%
Slew Rate: 60 Volts per microsecond
Bandwidth: 5Hz - 300,000Hz , +/- 0.1dB
Output Impedance: 50 Ohms
Gain: 21 dB
Dimensions (H x W x D): 4 7/8" x 16 3/4" x 15"
Weight: 29 Pounds

DESCRIPTION

RECOMMENDED USAGE

TECHNICAL HIGHLIGHTS
Remote Volume Control
Large 300 VA transformer
20,000
µF capacitor-based power filtration
REVIEWS
MANUFACTURER'S REVIEW PAGE
LINKS
OFFICIAL G2 PAGE
OFFICIAL TECHNOLOGY PAGE
FAQ
PRICES

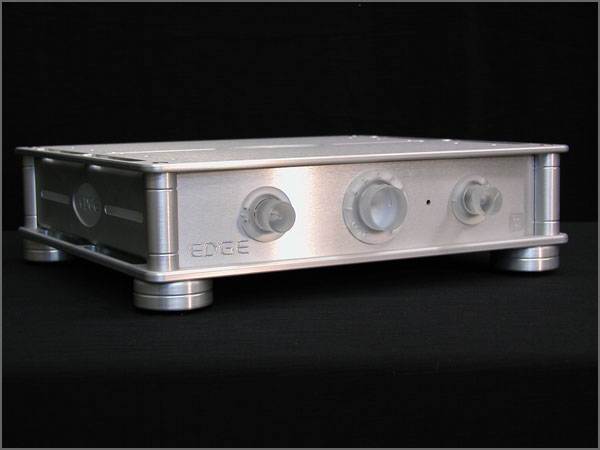

G1


Pre Amplifier

Remote Volume Control: Yes
Transformers: One 300 VA
Power Supply Filtration: 20,000 µF per channel
Input Connection Type: RCA
Total Harmonic Distortion: <0.009%
Transient Intermodulation Distortion:  <0.09%
Slew Rate: 60 Volts per microsecond
Bandwidth: 5Hz - 300,000Hz , +/- 0.1dB
Output Impedance: 50 Ohms
Gain: 21 dB
Dimensions (H x W x D): 4 7/8" x 16 3/4" x 15"
Weight: 29 Pounds

DESCRIPTION

RECOMMENDED USAGE

TECHNICAL HIGHLIGHTS
Battery operated true DC power supply
Remote Volume Control
Large 300 VA transformer
20,000
µF capacitor-based power filtration
REVIEWS
MANUFACTURER'S REVIEW PAGE
LINKS
OFFICIAL G1 PAGE
OFFICIAL TECHNOLOGY PAGE
FAQ
PRICES




C
O
M
P
A
R
I
S
I
O
N
S
  G8+ G8 G6 G4.5 G4 G3
Number of chassis 2 1 1 1 1 1
Number of channels 2 (One per chassis) 2 2 3 2 2
Integrated (built in pre amplifier) No No No No No Yes
RMS Power Output 200 Watts per channel @ 8 Ohms 175 Watts per channel @ 8 Ohms 135 Watts per channel @ 8 Ohms 100 Watts per channel @ 8 Ohms 100 Watts per channel @ 8 Ohms 85 Watts per channel @ 8 Ohms
Bias Circuit One 630 nm Bias Laser per channel Conventional Conventional Conventional Conventional Conventional
Transformers One 750 VA per channel One 1000 VA One 600 VA One 1000 VA One 750 VA One 350 VA
Power Supply Filtration 60,000 µF per channel 60,000 µF per channel 40,000 µF per channel 40,000 µF per channel 20,000 µF per channel 20,000 µF per channel
Output Impedance 0.07 Ohms 0.35 Ohms 0.07 Ohms 0.15 Ohms 0.15 Ohms 0.15 Ohms
Input Impedance 33,000 Ohms 33,000 Ohms 33,000 Ohms 33,000 Ohms 33,000 Ohms 33,000 Ohms
Constant Current Capability 26 amps per channel 18 amps 14 amps 14 amps 10 amps 6 amps
Input Connection Type RCA RCA RCA RCA RCA RCA
Dimensions (H x W x D) 4 7/8" x 16 3/4" x 15" 4 7/8" x 16 3/4" x 15" 4 7/8" x 16 3/4" x 15" 4 7/8" x 16 3/4" x 15" 4 7/8" x 16 3/4" x 15" 4 7/8" x 16 3/4" x 15"
Weight 52 lbs each 52 lbs 50 lbs 51 lbs 45 lbs 35 lbs
