AUDIO NOTE |
|
Audio Note
is an English company that has been in business for over 20
years producing a very wide range of products including some of the best tubed gear in the world.
Complete systems, from quite modestly priced to
cost-no-object.
|
|
|
| |
|
Sound |
| The
company sound is romantic and well controlled.
|
|
|
| |
|
Technology |
|
No Feedback
Amplifier
designs are based on simple but elegant feedback-less
architectures.
No
Over- or Up-Sampling Digital
Audio Note digital are designed to be simple and
accurate without technological over-engineering that often
causes as much harm as it cures.
|
|
|
| |
|
Portfolio |
|
Audio Note makes a
wide range of products from cables, to amps to speakers.
|
|
|
| |
|
|
| |
|
|
| |
|
| |
|

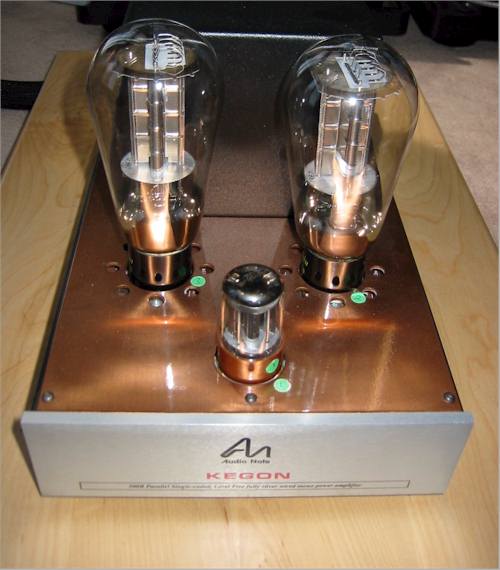

Kegon
Monoblock amplifiers |
|
Output
Circuit: |
Two 300B in parallel |
|
Power
Supply Filtration: |
N/A |
|
RMS
Power Output: |
22
Watts per channel @ 8 Ohms |
|
Total
Harmonic Distortion: |
N/A |
|
Transient Intermodulation Distortion: |
N/A |
|
Slew
Rate: |
N/A |
|
Bandwidth: |
N/A |
|
Input
Impedance: |
N/A |
|
Input
Type: |
RCA, XLR |
|
Output
Impedance: |
N/A |
|
Constant Current Capability: |
N/A |
|
Dimensions: |
8.5 x 8 x 21.5 (HxWxD) |
|
Weight: |
50
lbs |
|
 |
| |
|
DESCRIPTION |
|
The Kegons are
22
watt Class A parallel single-ended no feedback mono
triode power amplifiers, components as KAGEKI, valve
compliment, 4 x WE300B (when available), 2 x NOS 5692,
2 x NOS 5U4G |
|
RECOMMENDED USAGE |
|
|
|
OPTIONS |
|
Face
plate: silver metal or black acrylic |
|
REVIEWS |
|
|
|
LINKS |
|
OFFICIAL WEBSITE |
|
FAQ |
|
PRICES |
|
|
|
| |
| |
| |

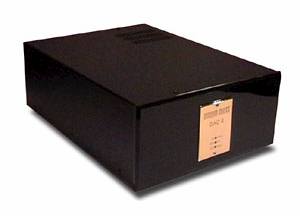

DAC 4.1
Balanced
Signature
CD Digital to Analog
Converter |
|
Tubed |
Yes |
|
Digital
inputs |
RCA & BNC, plus
XLR AES/EBU |
|
Digital
outputs |
1 x LEMO |
|
HCDC®
support |
N/A |
|
SACD
support |
No |
|
DVD-A
support |
No |
|
High-resolution support |
24/96 (DAC 5 special) |
|
Upsampling / oversampling / upconversion |
1xoversampling™ |
|
Signal
(180 degree phase) inversion capability |
Yes |
|
Integral
pre-amplifier (i.e. variable output) |
No |
|
Pre-amplifier analog inputs |
None |
|
Single-ended (RCA) analog outputs |
2 |
|
Balanced
(XLR) analog outputs |
1 |
|
Output
impedance |
N/A |
|
Rise
time |
N/A |
|
Slew
rate |
N/A |
|
Remote
control |
No |
|
External
power supply |
No |
|
Weight |
N/A |
|
Other |
|
|
 |
| |
|
DESCRIPTION |
|
The
DAC 4.1x Balanced Signature is the same as
the DAC4.1x Balanced in DAC5
chassis but with better I/V interfaces and Audio Note™
silver wired filters, E182CC output stage with 5:1 step
down R36 double C-core copper wired output transformers
with balanced XLR input and output and valve stabilised
power supply with choke filter and 6X5 HT rectifier |
|
RECOMMENDED USAGE |
|
|
|
OPTIONS |
|
Face plate:
silver metal or black acrylic |
|
REVIEWS |
|
|
|
LINKS |
|
OFFICIAL WEBSITE |
|
FAQ |
|
PRICES |
|
|
|
| |
| |
| |
|
CDT-Two
CD Transport |
|
Tubed |
No |
|
Inputs |
No |
|
Digital
outputs |
RCA |
|
Redbook
support |
Yes |
|
SACD
support |
No |
|
DVD-A
support |
No |
|
Direct
drive or belt-driven |
Direct drive |
|
Remote
control |
Yes |
|
External
power supply |
No |
|
Top or
Front loading |
Top |
|
Weight |
~10
lbs |
|
Other |
|
|
 |
| |
|
DESCRIPTION |
|
The
CDT-Two consists of a
Philips CD Pro transport top loader with lid and Audio
Note™ copper wired digital output transformers, RCA and
AES/EBU outputs, Black Gate upgraded power supply |
|
RECOMMENDED USAGE |
|
|
|
OPTIONS |
|
Face plate:
silver metal or black acrylic |
|
REVIEWS |
|
|
|
LINKS |
|
OFFICIAL WEBSITE |
|
FAQ |
|
PRICES |
|
|
|
| |
| |
| |
|
|
| |
| |
| |
| |
| |
| |
| |
|
