The Sound LAB Ultimate 1 Electrostatic Loudspeaker
Uncrating and Setup

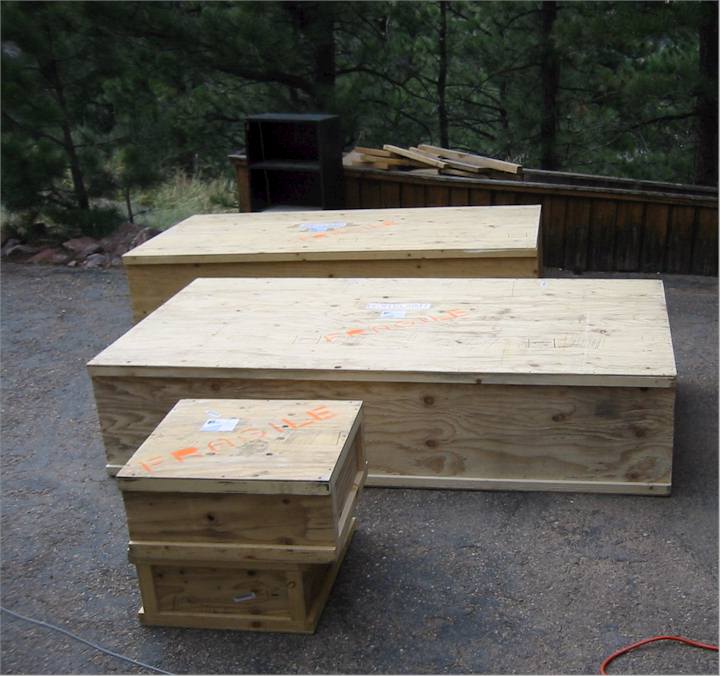

The speakers are delivered in two large crates (the speakers) and two small ones (the speaker bases). The speaker crates are not especially heavy by themselves (40 - 50 lbs. or so, each) but the speakers themselves are around 200 lbs each.
The crates are designed to lay flat.

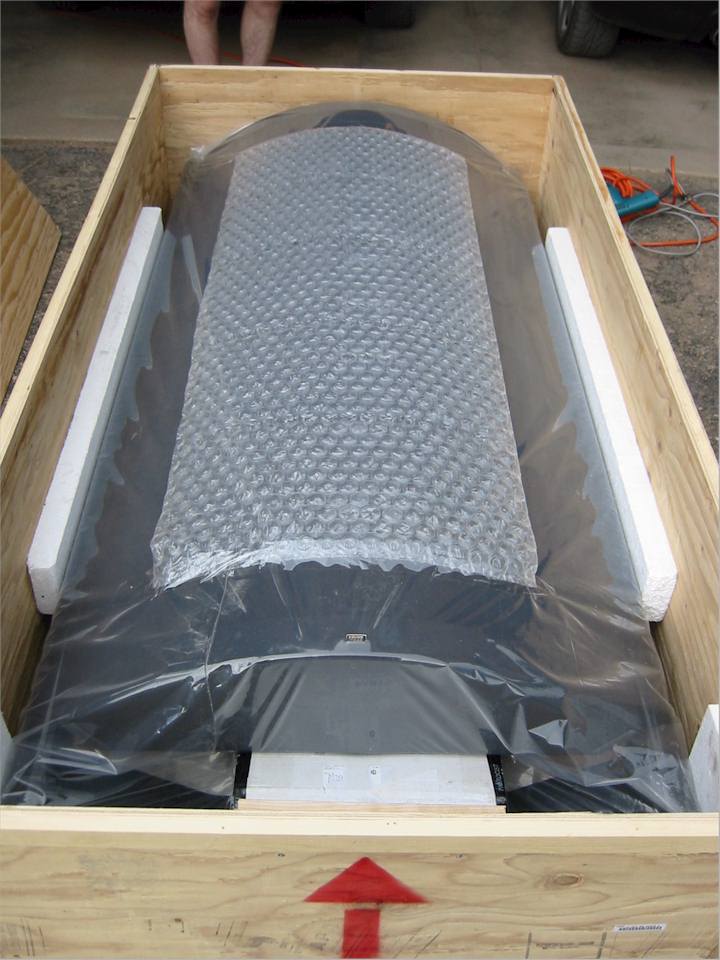

One of the speaker crates with its top removed.
One end of the one of the speaker crates contains a box of parts.

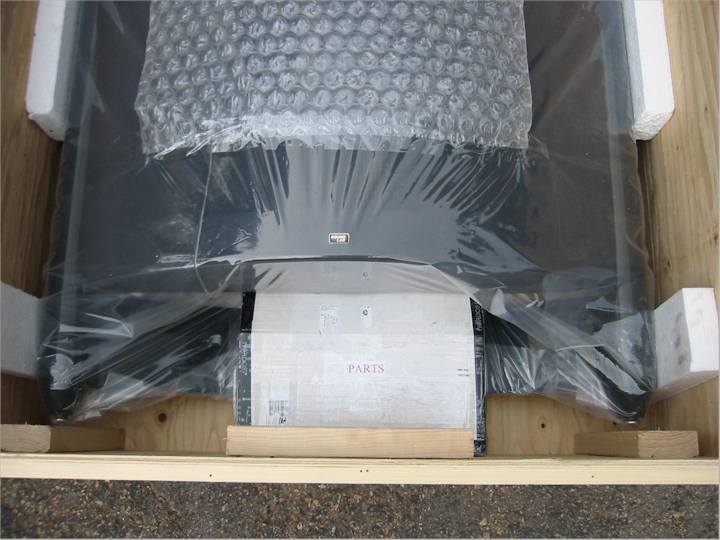

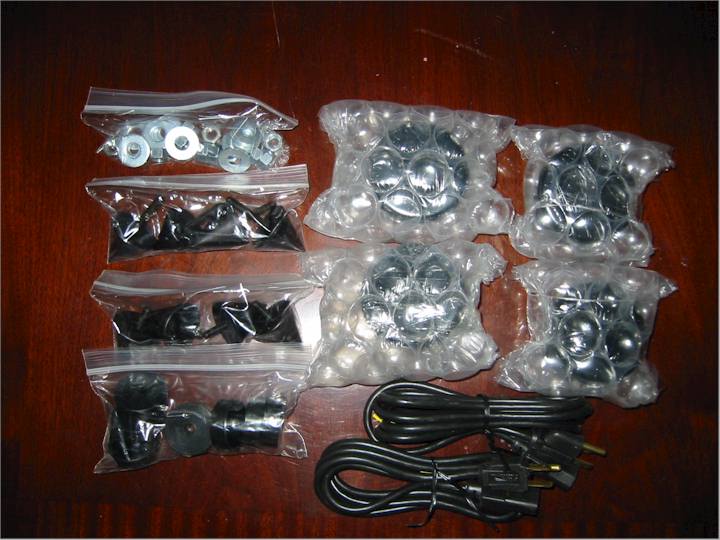

The parts that come with the speakers.

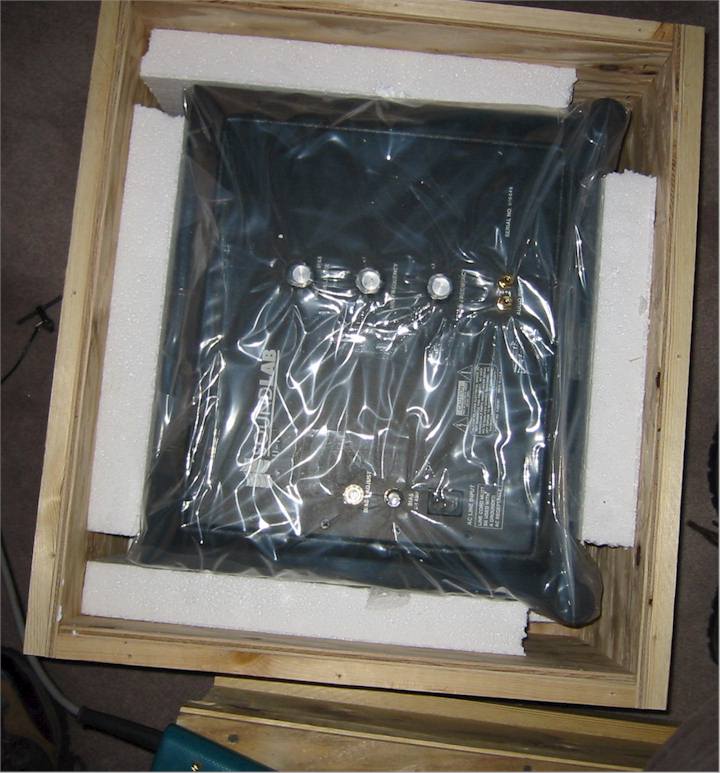

One of the crates with the speaker bases with it top removed.

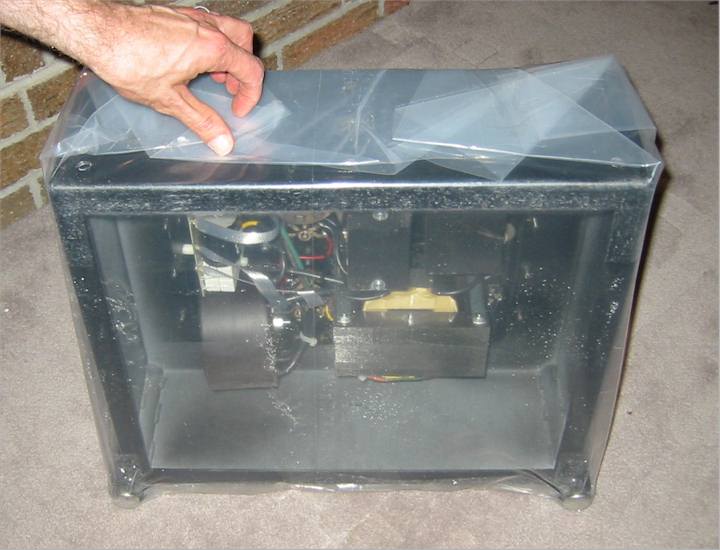

One of the two speaker bases on its side still encased in plastic.

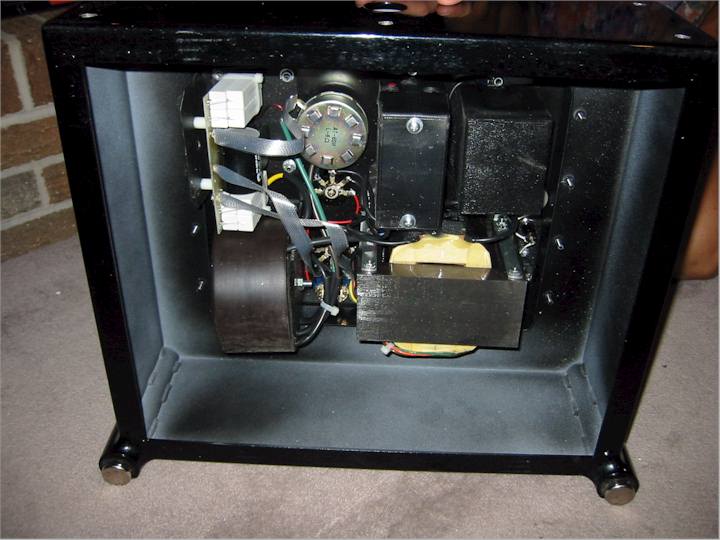

The underneath of one of the speaker base units.

We had the Ultimates wired internally with Valhalla speaker wire - which is visible in this picture.

The speaker is positioned such that it is lying flat on its front.

Visible here are the 6 bolts that the speaker's base will attach to.

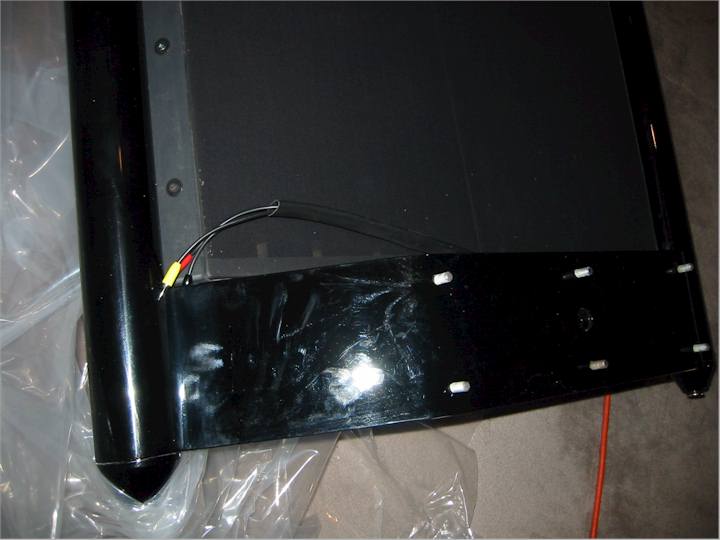

Also visible is the wires that connect the speaker to its base.

The top of one of the speaker base units.
Another view of the speaker base unit.

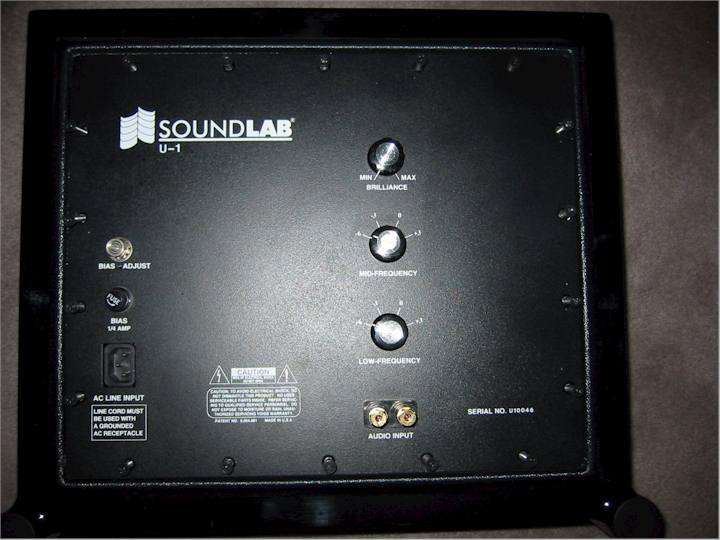

Note the 18(!) screws that are used to attach the guts of the base unit to its steel frame enclosure.

The guts must be removed in order to attach the wires to the speaker to the speaker's base unit.

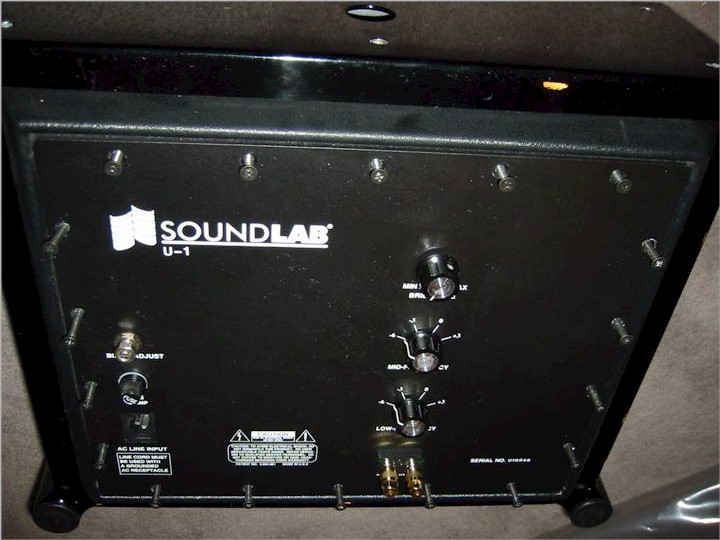

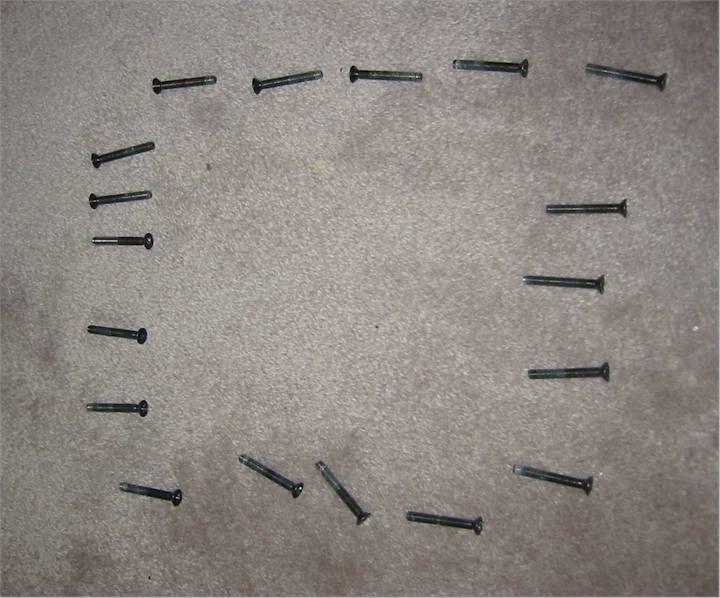

Here the screws are placed in the same configuration as they were originally found.

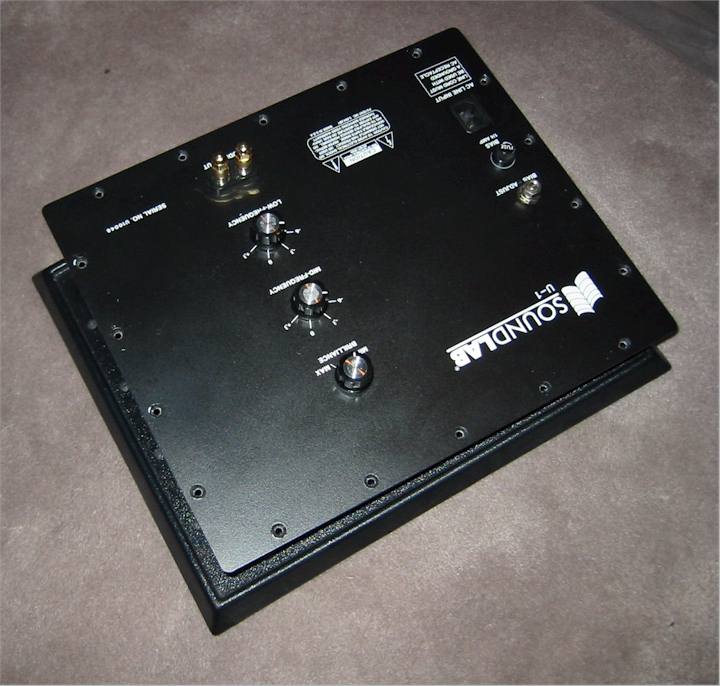

The guts of the speaker base unit removed from its steel enclosure.

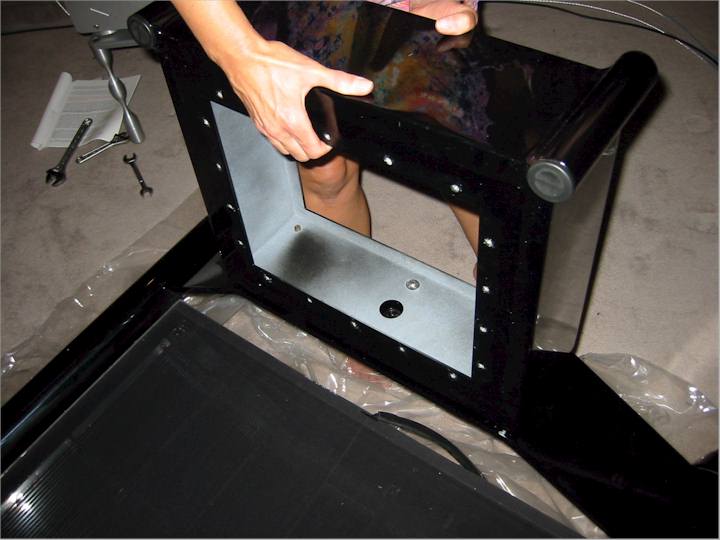

Here the speaker base unit's steel enclosure is being positioned in order to attach it to the bottom rear of the speaker.

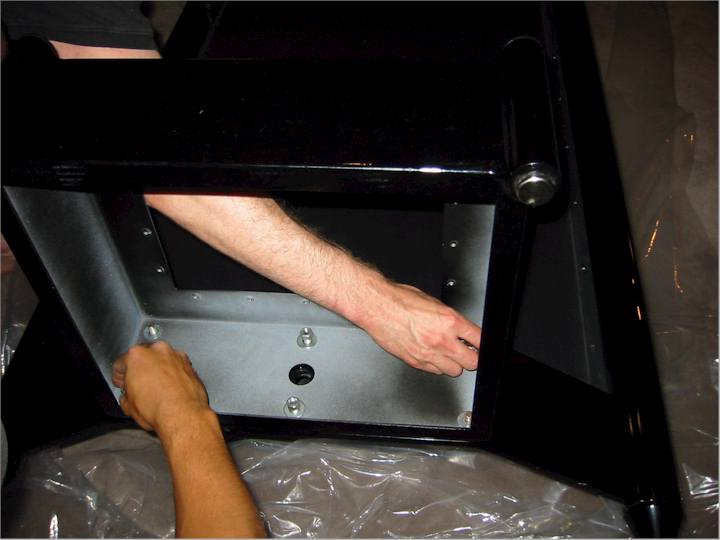

Bolting the steel enclosure into place.

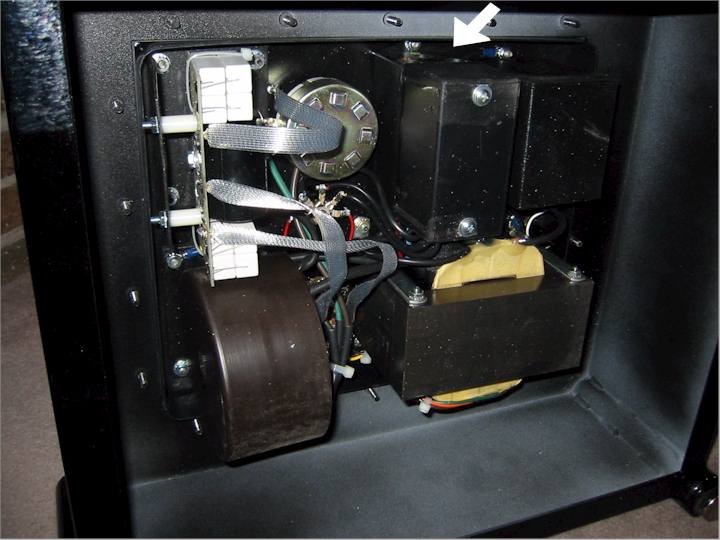

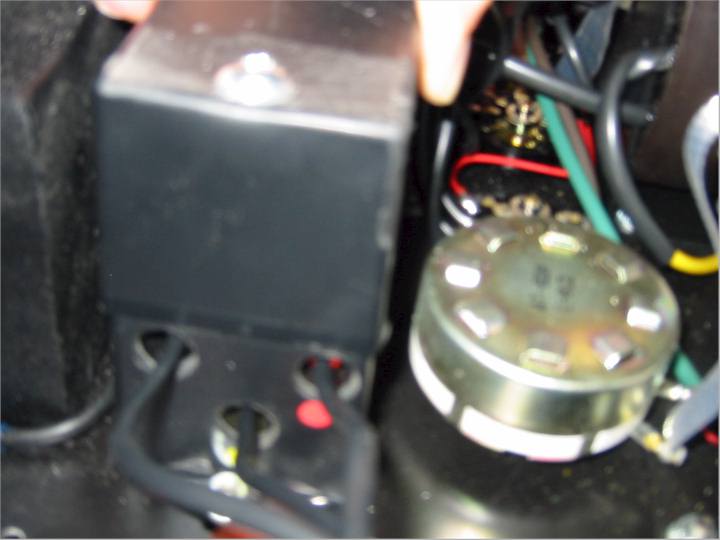

Here we see where the connectors from the speaker connect to the speaker's base unit. The connectors are inaccessible unless the base unit's guts are removed from its steel enclosure

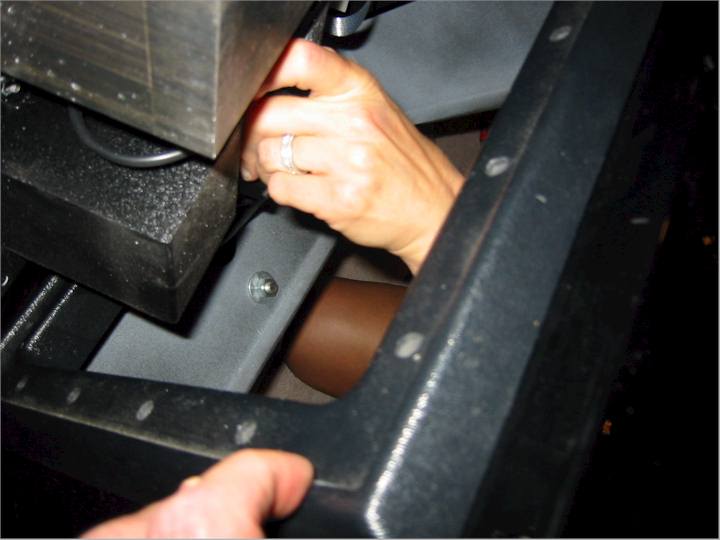

While one (or two people) hold the speaker's base unit guts (which weighs about 40 lbs.) near the speaker - another takes the 3 connecting wires and connects them into place
Here we see the 3 connecting wires connected to positions that cannot be accessed with the base unit's guts unless the guts are removed from their steel frame.

The wires are color coded: black, yellow, and red and are easily matched up with their destinations.

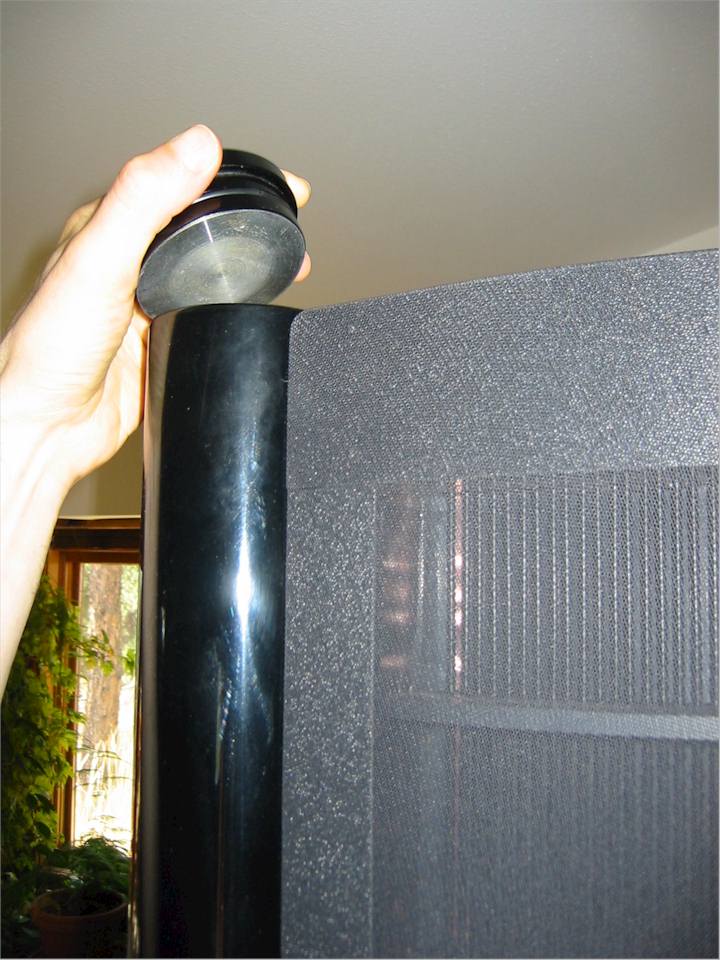

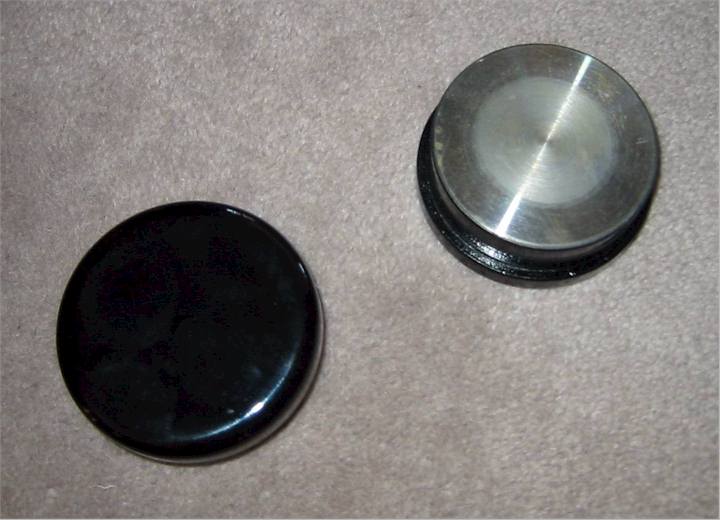

The solid steel pucks that serve as the top of the posts on the speakers.
Positioning one of the pucks.

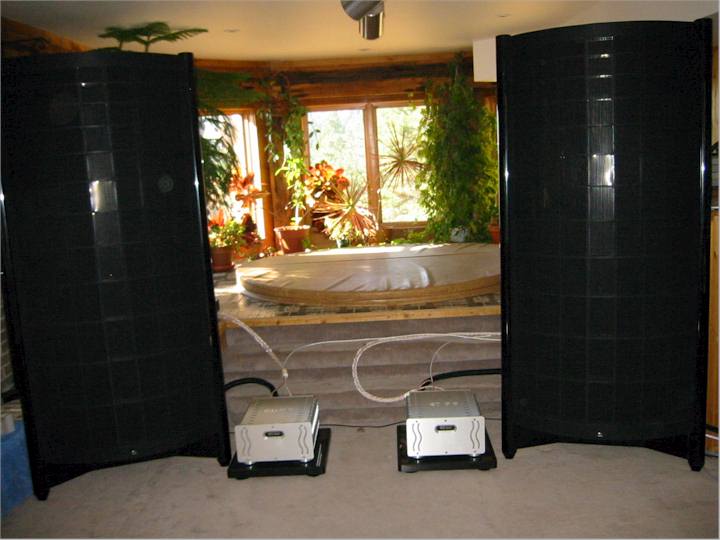

The speakers in place and playing music.



No more hot tub parties for us...

Associated equipment: Edge Signature One monoblock amplifiers, Shunyata Anaconda power cables and Andromeda speaker cables, Nordost Valhalla interconenct.

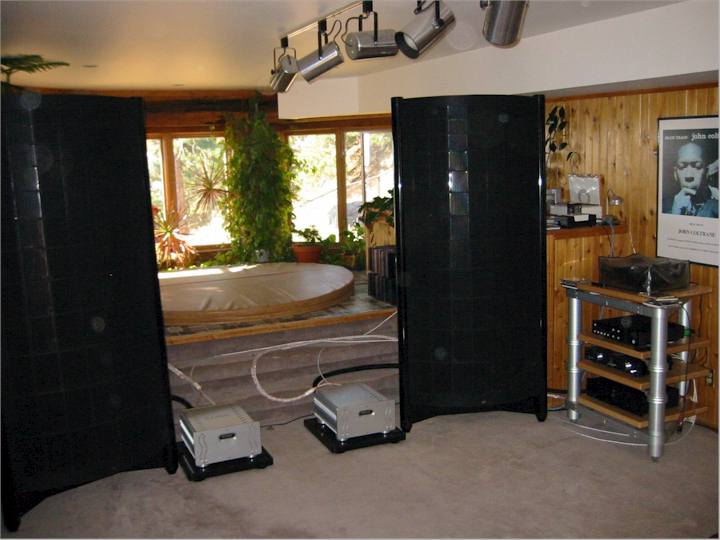

Another view of the speakers.

Associated equipment: Same as above plus: Acoustic Dreams rack, SME 20/2A turntable, Levinson 390S CD player, Burmester 877 mkII preamplifier, Lamm LP2 phono stage.
